How to Use – Gray Non-Current


On medium to large jobs the Drawing screen can become a confused mass of colored spaghetti. Gray Non-Current tells The EDGE to make all lines on the screen except for the current condition Gray in color so that it stands out. If you are digitizing a lot of say small wall returns in a hotel or floor of an office the colored lines will stand out and should be able to tell whether you have digitized all of them or not.

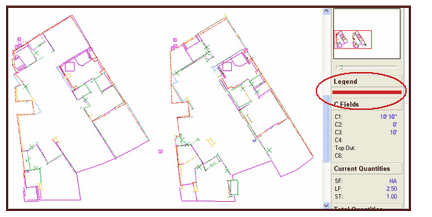

Drawing Screen with Gray Non-Current turned OFF:

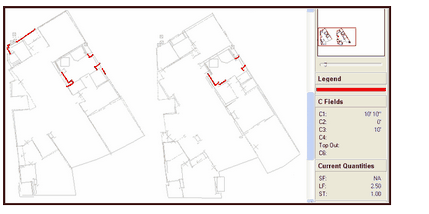

Drawing Screen with Gray Non-Current turned ON

Notice the difference between the two panels above. In the top one it is rather difficult to distinguish the red lines as indicated by the legend. However, looking at the bottom panel with Gray turned On it is rather easy to find the red line types.
